Measuring devices

Control and monitoring equipment

Measuring devices

A wide range of measuring devices is available to enable a strong and flexible product offering. New devices are added continuously to match market needs and demands.

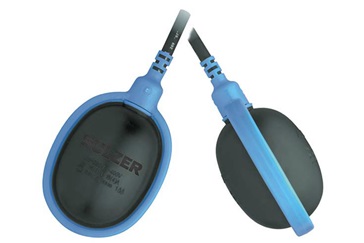

Float switch type ABS KS

The KS float switch, used in liquids for control or signal activation, operates in response to the liquid level. It is also suitable for use in sewage and for automatic level control. The KS float switch is impact- and shock-resistant, mercury-free, and environmentally friendly.

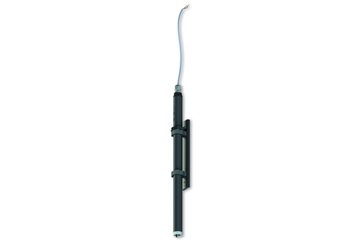

Conductive level switch type ABS MD 131

The MD 131 is a conductive level switch primarily used as an overflow switch in sewage pumping pits. The MD 131 can also be used in other applications where the conductivity of the medium is above 20 μS/cm.

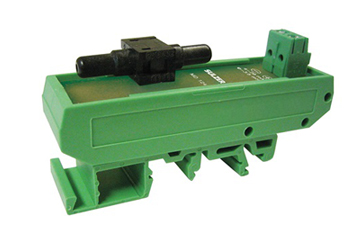

Pressure sensor type ABS MD 124

The MD 124 is a 4-20 mA loop-powered pressure sensor. It has a robust construction and is easily mounted on a standard 35 mm DIN rail. MD 124 is ideal for measuring liquid levels using the ”bubble tube” principle.

Submersible pressure sensor type ABS MD 126

The MD 126 is a high-accuracy submersible hydrostatic level sensor. Encapsulated in stainless steel and resistant to sewage water, it is designed to measure levels in liquids such as storm water and wastewater in sump pumps.

Submersible pressure sensor type ABS MD 127

MD 127 is a sewage water resistant, stainless steel encapsulated, submersible, hydrostatic level sensor of very high accuracy and over pressure capability. It is designed for level measurement in liquids like stormwater and wastewater in pump sumps. When connecting the 2-wire loop powered sensor in series with a DC power supply, the MD 127 gives a 4 to 20 mA output signal which is proportional to the level of the liquid.

The iPhase™ Level Measurement and Water Profiler

The iPhase™ profiler measures the oil water interface, provides accurate measurements of water conductivity and thereby the oil in water profile inside hydrocarbon separators.
