RS 485 communication module type ABS CA 622

Thetys Pumps / Products / Control and monitoring equipment / Pump monitoring and control accessories / RS 485 communication module type ABS CA 622

RS 485 communication module type ABS CA 622

Expand the communication of your system

Communication module type ABS CA 622 allows you to send and receive information to your peripheral products via your existing pump controller PC 441 using a RS 485 Modbus interface.

Main design features

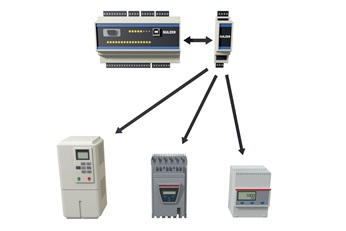

CA 622 communicate with PC 441, VFD, soft starter and energy meter

Less wiring in your system ultimately reduces installation time as well as installation costs, making you up-and-running in no time. CA 622 communication module enables communication with up to 9 devices, such as variable frequency drives, soft starters, or energy meters, using RS 485 communication via a Modbus RTU protocol. Incorporating them in this way can reduce the need to install additional cables and ports.

Connect peripheral devices via the module’s RS 485 galvanic isolated communication port and access them via the same web interface as other equipment in the system.

Connecting the peripherals over RS 485, not only simplifies the installation, it also enables access to much more data and information than connected via discrete cables!

Technical specifications

Ambient operating temperature	-20 to +50 ºC (-4 to +122 ºF)
Mounting	DIN rail 35 mm
Degree of protection	IP 20, NEMA: Type 1
Housing material	PPO and PC
Dimensions H x W x D	86 x 58 x 35 mm (3.39 x 2.28 x 1.38 inch)
Humidity	0-95 % RH non-condensing
Power supply	9-34 VDC SELV or Class 2
RS 485 serial interface	No 1, galvanic separated
Protocol	Modbus master RTU
