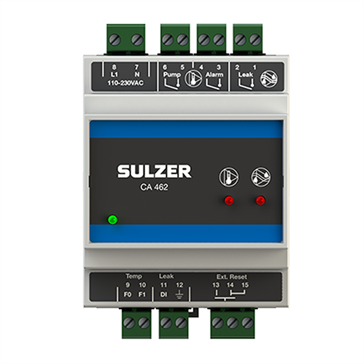

Temperature and leakage relay type ABS CA 462

Thetys Pumps / Products / Control and monitoring equipment / Pump monitoring and control accessories / Temperature and leakage relay type ABS CA 462

Temperature and leakage relay type ABS CA 462

Helping detect leaks and temperature changes

CA 462 is designed to spy and detect temperature and leakage in pumps and mixers. The amplifier is housed in a norm enclosure fitted for DIN-rail mounting. The unit is available in two executions, 24 VDC or 110-230 VAC supply.

Main design features

CA 462 is designed to spy and detect leakage and temperature in pumps and mixers.
The amplifier is housed in a norm enclosure fitted for DIN-rail mounting.

The unit is available in two executions, 24 VDC or 110-230 VAC supply.

To minimize the risk of false alarms the leakage failure has to be detected for time duration of approximately 10 seconds.

To simplify the mounting the unit is fitted with plug-in type of connectors.

The unit has separate alarm outputs for temperature and leakage.

CA 462 also has main contactor relay output energized depending on alarm/s with manual reset option.

Included in the kit is also a Xylem MiniCas adaptor.

Key characteristics

Leakage monitoring with 10 sec alarm delay
Wide resistance range, 0-100 kOhm
Temperature monitoring
Wide temperature range -20 to +50 ºC (-4 to +122 ºF)
Max load alarm output relays 250 VAC 3 ampere
Max load pump blocking relay 250 VAC 6 ampere
Connection via plug in connectors
DIN-rail mounted

Technical specifications

Leakage detection treshold (+/-10%)	< 100 kOhm
Temp. input threshold (+/-10%)	> 3.3 kOhm (PTC / Klixon)
Alarm delay leakage	Approx. 10 seconds
Ambient operating temperature	-20 to +50 ºC (-4 to +122 ºF)
Ambient storage temperature	-30 to +80 ºC (-22 to +176 ºF)
Degree of protection	IP 20, NEMA: Type 1
Housing material	PPO and PC
Mounting	DIN rail 35 mm
Installation category	CAT II
Pollution degree	2
Flame rate	V0 (E45329)
Humidity	0-95% RH non-condensing
Dimensions	H x W x D: 108 x 70 x 58 mm (4.25 x 2.76 x 2.28 in.)
Power supply	16907006: 110-230 VAC 16907007: 18-36 VDC SELV or Class 2
Fuse	Max 10 A
Terminal wire size	Use copper (Cu) wire only. 0.2 – 2.5 mm² flexible core, stripped length 8 mm
Terminal tightening torque	0.56 – 0.79 Nm (5-7 lbs-in)
Power consumption	< 5 W
Max load alarm relays	250 VAC 3 Ampere
Max load pump blocking relay	250 VAC 6 Ampere
Altitude	Max 2,000 MASL or 6,562 ft. AMSL
Compliance	CE, CSA, C/US, UL
