How the PCL series works

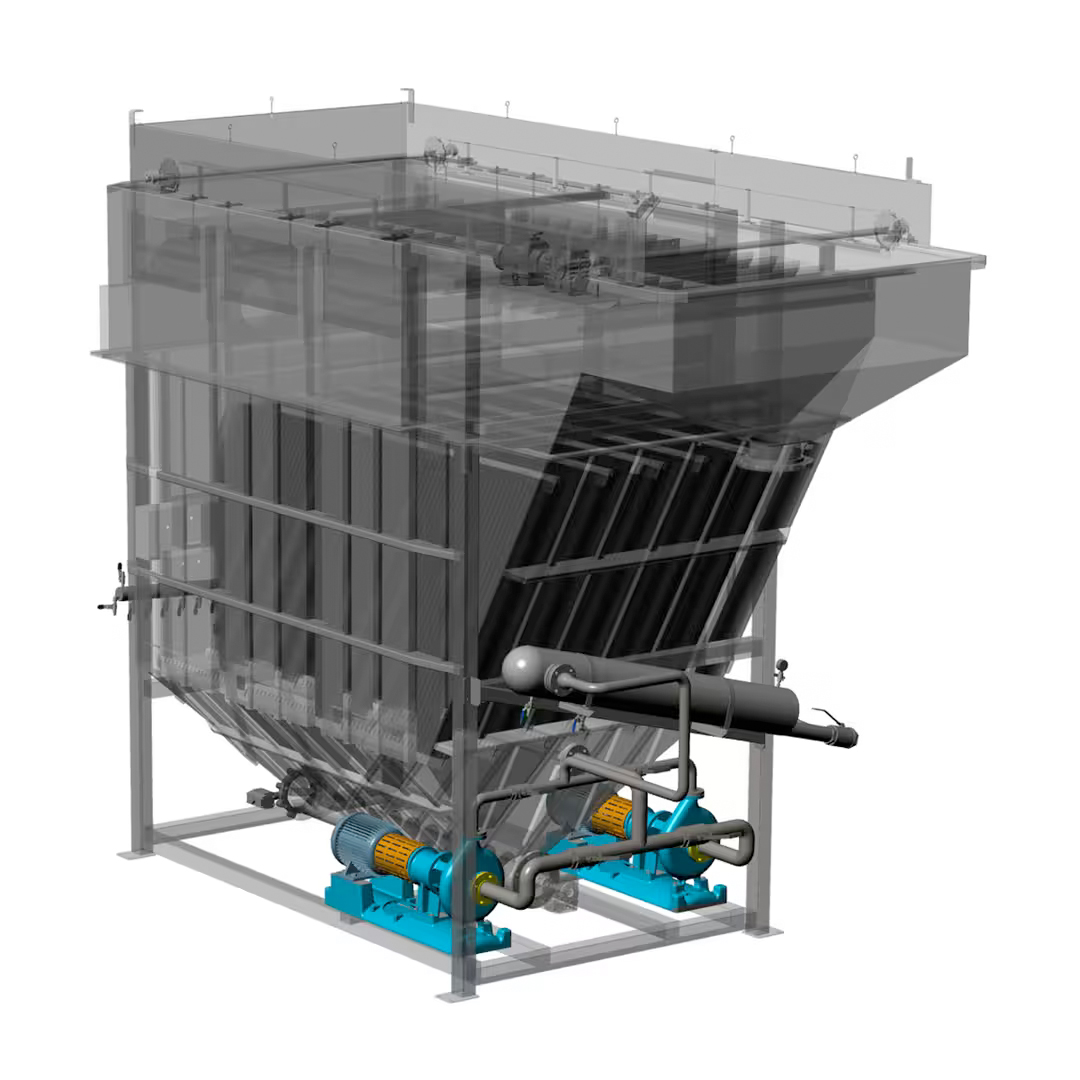

The PCL series is designed for high-flow duties where space is limited. Its vertical tank layout allows high hydraulic loading within a compact footprint.

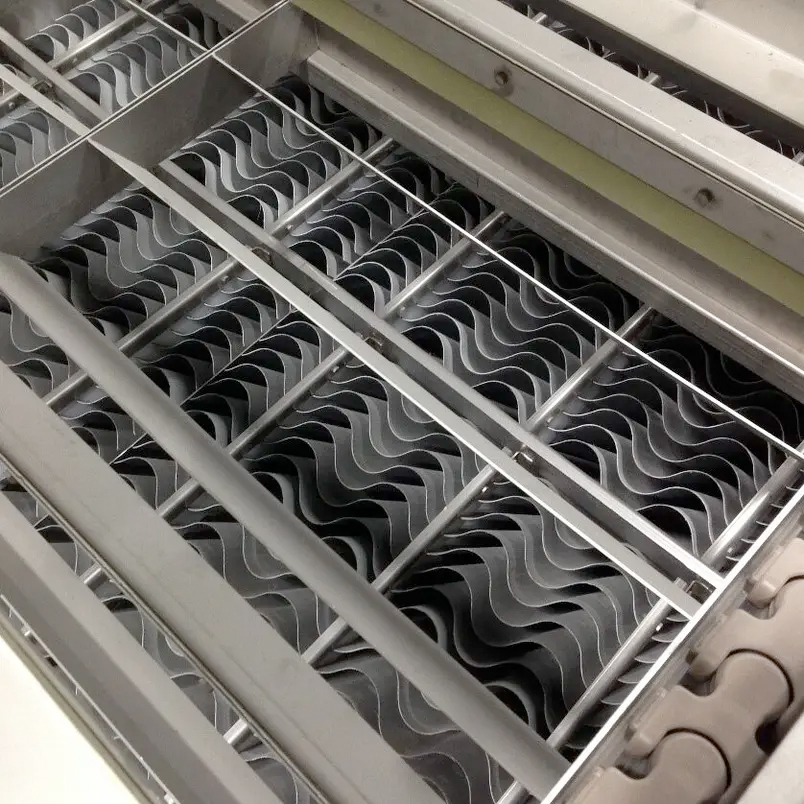

A cross‑flow plate pack increases the effective separation area inside the tank. This supports stable separation performance at higher loading rates without increasing the tank size.
Floated solids are skimmed from the surface and passed over an in-tank dewatering grid. This allows excess water to drain before the float is discharged to the sludge hopper.
Clarified water exits the lower part of the tank and is routed to downstream biological treatment, polishing, or discharge, depending on the process layout.
Applications and use cases
Benefits (commercial and operational)
Options and configuration
| Parameter | Typical range |
|---|---|
| Flow capacity | Up to 454+ m³/h |
| Free separation area | 0.5 – 14 m² |
| Effective separation area | 3 – 288 m² |
| Construction | Stainless steel (304, 316, duplex, or custom alloys) |
When should I choose a high-rate DAF system?
Choose high-rate DAF when flows are high and footprint is constrained, and you need predictable clarification performance.
What is the role of the plate pack?
The plate pack increases effective separation area and supports high-rate operation without expanding the tank footprint.
Does the PCL series require chemical dosing?
Many duties benefit from coagulant and flocculant dosing to improve capture of fine solids and emulsified FOG. The approach is selected based on influent variability and treatability testing where required.
How is float dryness improved in the PCL series?
An integrated dewatering/thickening grid allows floated solids to release water before discharge to the sludge hopper. This improves float quality and reduces downstream dewatering load depending on the sludge line design.
Can the system be configured for brownfield plants?
Yes. Layout, access, whitewater skid, and instrumentation can be configured around existing civil structures and tie-in points, with options for platforms and covers where required.
