Submersible drainage pump XJ 110

Thetys Pumps / Products  / Pumps  / Dewatering pumps  / Drainage pumps / Submersible drainage pump XJ 110

Submersible drainage pump XJ 110

Guaranteed peak performance

The submersible drainage pump XJ 110 is ideal for pumping water and dirty water mixed with light abrasives. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear. 50 Hz: head max 52 meters, flow max 54 l/s. 60 Hz: head max 63 meters (207 feet), flow max 55 l/s (873 gpm).



Main benefits
  • Plug-and-pump installation without having to worry about overheating.
  • Reliable, trouble-free operation also at low water levels.
  • Pumps with built-in AquaTronic unit will adjust incorrect phase order, ensuring correct impeller rotation.
  • Modular design increases serviceability and makes it easy to convert the pump for different hydraulic requirements. Pumps with built-in AquaTronic can be checked without disassembly, using its service software.
Model
  • XJ 110 ND medium head 3-phase
  • XJ 110 ND AT* medium head 3-phase
  • XJ 110 HD high head 3-phase
  • XJ 110 HD AT* high head 3-phase

Weight: 81 kg (179 lb)

*AquaTronic: Built in electronic pump control.

See our performance ranges

Performance range – XJ 110, 50 Hz

Performance range – XJ 110, 60 Hz

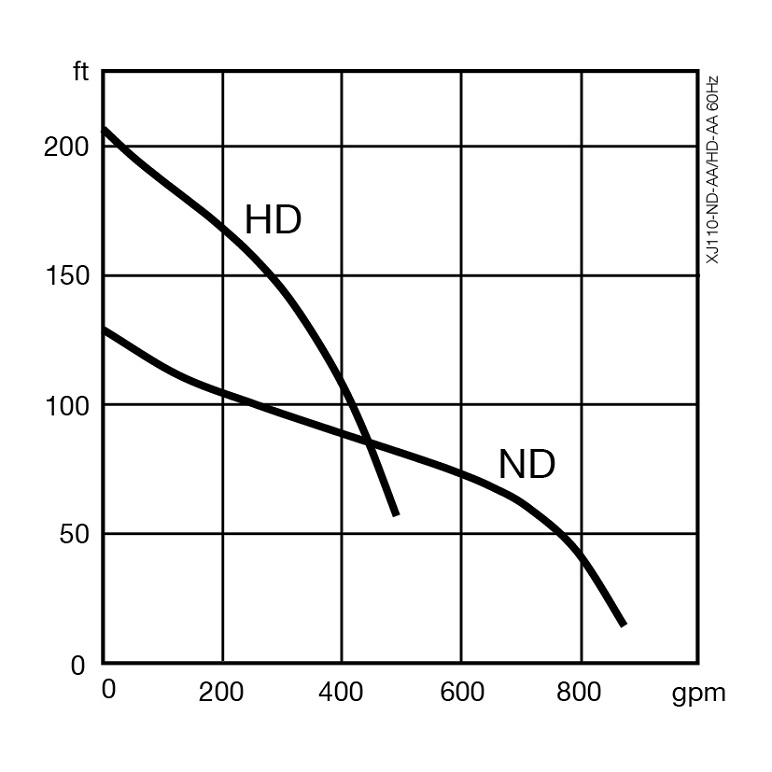

Performance range – XJ 110, 60 Hz US

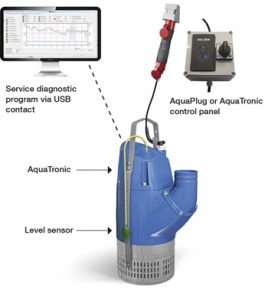

AquaTronic built-in electronic supervision

AquaTronic option

The AquaTronic unit (AT) replaces the built-in contactor in the basic pump configurations and ensures that the motor always rotates correctly, no matter how the phases are connected. Key benefits of the AquaTronic unit include:

  • Correction of motor rotation if phases are improperly connected
  • Run mode (no panel needed)
  • Integrated start equipment (direct or soft start depending on pump model)
  • Motor protection against high temperature, high amperage and missing phase
  • Anti-clog function



If the pump is also equipped with an optional level sensor, AquaTronic provides:

  • Precise level control
  • Protection against dry running
  • Energy save mode (energy is saved through stopping at dry run and starting by level sensor)



AquaTronic service diagnostic program

Connecting a PC to the AquaTronic unit via USB cable provides access to the service diagnostic program, which offers:

Pump status data, pump operating history, pump failure history, pump service/maintenance history, digital manual and spare part documentation



AquaPlug and AquaTronic control panel

AquaPlug and AquaTronic control panel are options that combine with AquaTronic to provide additional alarm and start/stop functions, as well as indications for important parameters.

Save

Starting method and motor protection

Starting method and motor protection

XJ110 AT: Direct on line start (DOL 500-550 V 50 Hz / 575 V 60 Hz ) with built in AquaTronic unit, which automatically adjusts phase order by dual contactors, ensuring correct motor rotation. Soft start (400 V 50 Hz / 380-460 V 60 Hz) is built in with the AquaTronic unit, where three thyristors reduces start current to three times the nominal current. Here two relays ensure correct motor rotation. The AquaTronic unit monitors motor temperature, by use of NTC thermistors built into stator windings, and stops the motor at high temperature. It will also stop the motor at high amperage or if a phase is missing

XJ110: Direct on line start with built in contactor. Pumps to be used with VFD or 1,000 V must have terminal block instead of contactor. Thermal switches (140°C / 284°F, ±5) built into the stator windings are connected to the contactor and stop the pump at high temperature.



Discharge connections

3” (standard HD), 4” (standard ND), 6” hose connections

3”, 4”, 6″ G/B.S.P. threaded connections

3″, 4″, 6″ NPT threaded connections

Save

Benefits

Plug- and pump installation

Plug in without having to worry about overheating. Built-in contactor and thermal sensors protect the motor from overheating. Pumps with a built-in AquaTronic unit will adjust electronically for incorrect phase order, ensuring correct impeller rotation.

Reliable and trouble-free operation

A double outer casing and good heat convection allow continuous operation at low water levels – or dry running – without motor damage. The pump design, robust construction and premium materials ensure high wear resistance.

Serviceability

The modular design of the pump range reduces costs by ensuring maximum pump availability with a smaller spare parts inventory. The condition of a pump with a built-in AquaTronic unit can be rapidly checked without disassembly, using its service software.

Saves energy and the environment

The high-efficiency motor and hydraulics are combined with low-friction bearings to reduce power losses. You achieve low total energy costs and minimize your carbon footprint. Environmentally safe white oil is used in the oil casing for easy inspection of seal conditions.

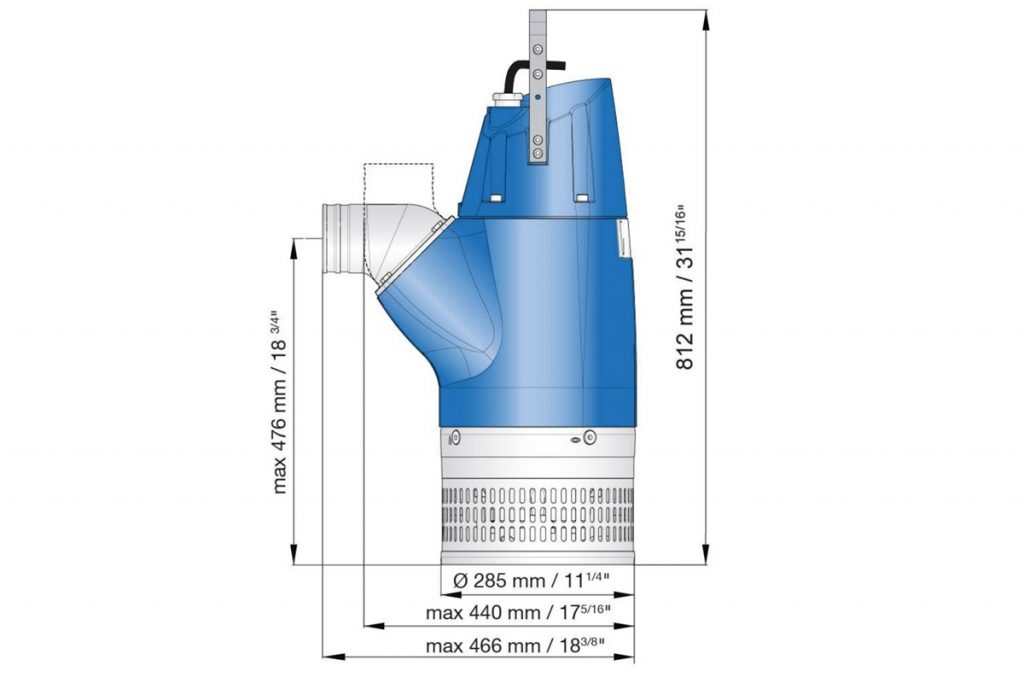

Dimension drawing

Save

50 Hz
Electric submersible pump XJ 110
Maximum submergence 20 m
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 40ºC
Max. media density 1,100 kg/m3
pH of the pumped medium 5-8
Strainer hole 7.5 x 22 mm
Max number of starts 30/hour
Motor rating P2 11.8 kW
Speed 2,920 rpm
Power cable 20 m type H07RN8-F

Save

60 Hz
Electric submersible pump XJ 110
Maximum submergence 20 m
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 40ºC
Max. media density 1,100 kg/m3
pH of the pumped medium 5-8
Strainer hole 7.5 x 22 mm
Max number of starts 30/hour
Motor rating P2 13.5 kW
Speed 3,500 rpm
Power cable 20 m type H07RN8-F
60 Hz US
Electric submersible pump XJ 110
Maximum submergence 65 ft
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 104ºF
Max. media density 0.0397 lb/inch3
pH of the pumped medium 5-8
Strainer hole 5/16” x 7/8”
Max number of starts 30/hour
Motor rating P2 18 Hp
Speed 3,500 rpm
Power cable 65 ft type AWG
Documents

Accessories list

Accessories – Discharge connections XJ, XJC, XJS (Imperial units) (pdf)

Languages: EN
Applications

Dewatering in construction

From roads and bridges to ditches and dams, construction sites are difficult places to work. Construction site managers need solid economic reasons for purchasing equipment. Our submersible dewatering pumps provide them.

Dewatering in tunneling

A tunnel construction is a complex worksite were many different variables need to be taken into consideration, flooding is one of them. Our drainage and sludge submersible dewatering pumps are lightweight, portable and start when you plug them in.

Flood control

Climate change is challenging natural disaster prevention. When water runs off the land in large quantities, Sulzer’s comprehensive range of pumps provide reliable, cost effective and efficient solutions for flood control.


Mining

Whether on the surface or underground, the conditions in mines are harsh. Besides the mud, slurry, stones, and rocks, there are large volumes of water to remove in order to keep production moving. Our dewatering pumps are rugged and ready, taking on the toughest drainage and sludge removal.
