Submersible drainage center-line pump XJC 80

Thetys Pumps / Products  / Pumps  / Dewatering pumps / Submersible drainage center-line pump XJC 80

Submersible drainage center-line pump XJC 80

Slim design for efficient pumping

The slim design of the submersible drainage center-line pump XJC 80 makes it perfect for applications with limited installation space. The pump is ideal for pumping water and dirty water mixed with light abrasives. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear. 50 Hz: head max 76 meters, flow max 52 l/s. 60 Hz: head max 94 meters (308 feet), flow max 37 l/s (587 gpm).



Specification
  • Plug- and-pump installation without having to worry about overheating.
  • Reliable, trouble-free operation also at low water levels.
  • Pumps with built-in AquaTronic unit will adjust incorrect phase order, ensuring correct impeller rotation.
  • Modular design increases serviceability and makes it easy to convert the pump for different hydraulic requirements. Pumps with built-in AquaTronic can be checked without disassembly, using its service software.
Model
  • XJC 80 ND medium head 3-phase
  • XJC 80 ND AT* medium head 3-phase
  • XJC 80 LD high flow 3-phase
  • XJC 80 LD AT* high flow 3-phase
  • XJC 80 HD high head 3-phase
  • XJC 80 HD AT* high head 3-phase
  • XJC 80 SD high head 3-phase
  • XJC 80 SD AT* high head 3-phase

 Weight: ND/LD/HD: 63 kg (139 lb), SD: 78 kg (172 lb)

*AquaTronic: Built in electronic pump control.

See our performance ranges

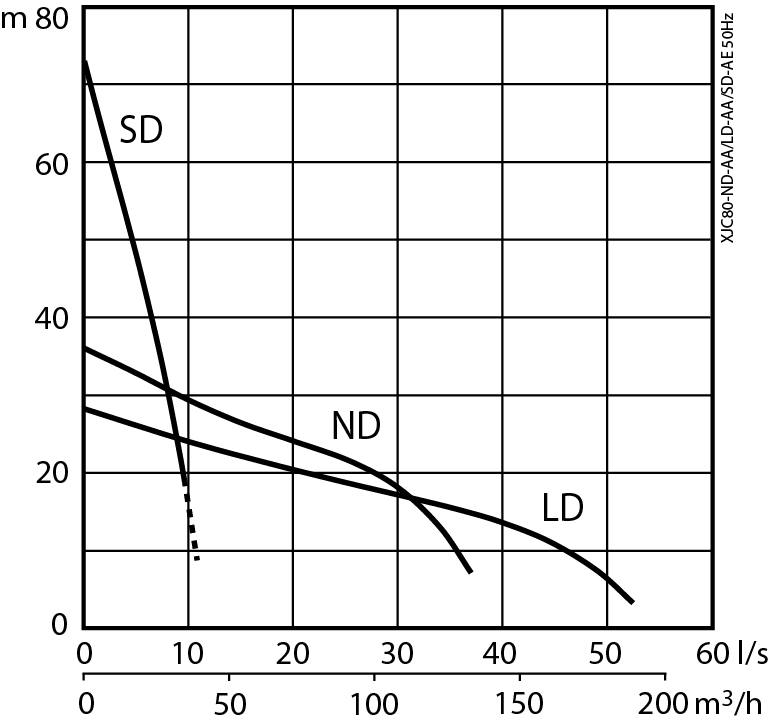

Performance range – XJC 80, 50 Hz

Performance range – XJC 80, 60 Hz

Performance range – XJC 80, 60 Hz US

AquaTronic built-in electronic supervision

AquaTronic option

The AquaTronic unit (AT) replaces the built-in contactor in the basic pump configurations and ensures that the motor always rotates correctly, no matter how the phases are connected. Key benefits of the AquaTronic unit include:

  • Correction of motor rotation if phases are improperly connected
  • Run mode (no panel needed)
  • Integrated start equipment (direct or soft start depending on pump model)
  • Motor protection against high temperature, high amperage and missing phase
  • Anti-clog function



If the pump is also equipped with an optional level sensor, AquaTronic provides:

  • Precise level control
  • Protection against dry running
  • Energy save mode (energy is saved through stopping at dry run and starting by level sensor)



AquaTronic service diagnostic program

Connecting a PC to the AquaTronic unit via USB cable provides access to the service diagnostic program, which offers:

Pump status data, pump operating history, pump failure history, pump service/maintenance history, digital manual and spare part documentation



AquaPlug and AquaTronic control panel

AquaPlug and AquaTronic control panel are options that combine with AquaTronic to provide additional alarm and start/stop functions, as well as indications for important parameters.





Cut-through of JC 34

Save

Save

Starting method and motor protection

Starting method and motor protection

XJC80 AT: Soft start (230-400 V 50 Hz / 230-460 V 60 Hz) is built in with the AquaTronic unit, where three thyristors reduces start current to three times the nominal current. Here two relays ensure correct motor rotation.

The AquaTronic unit monitors motor temperature, by use of NTC thermistors built into stator windings, and stops the motor at high temperature. It will also stop the motor at high amperage or if a phase is missing.

XJC80: Direct on line start with built in contactor. Pumps to be used with VFD or 1,000 V must have terminal block instead of contactor. Thermal switches (140ºC / 284ºF, ±5) built into the stator windings are connected to the contactor and stops the pump at high temperature.

Discharge connections

3” (standard HD/SD), 4” (standard ND) ,6” (standard LD) hose connections
3”, 4”, 6″ G/B.S.P. threaded connections
3”, 4”, 6″ NPT threaded connections
Benefits

Plug-and-pump installation

Plug in without having to worry about overheating. Built-in contactor and thermal sensors protect the motor from overheating. Pumps with a built-in AquaTronic unit will adjust electronically for incorrect phase order, ensuring correct impeller rotation.

Reliable and trouble-free operation

A double outer casing and good heat convection allow continuous operation at low water levels – or dry running – without motor damage. The pump design, robust construction and premium materials ensure high wear resistance.

Serviceability

The modular design of the pump range reduces costs by ensuring maximum pump availability with a smaller spare parts inventory. The condition of a pump with a built-in AquaTronic unit can be rapidly checked without disassembly, using its service software.

Saves energy and the environment

The high-efficiency motor and hydraulics are combined with low-friction bearings to reduce power losses. You achieve low total energy costs and minimize your carbon footprint. Environmentally safe white oil is used in the oil casing for easy inspection of seal conditions.

Save

Dimension drawing

Save

Save

50 Hz
Electric submersible pump XJC 80
Maximum submergence 20 m
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 40ºC
Max. media density 1,100 kg/m3
pH of the pumped medium 5-8
Strainer hole 7.5 x 22 mm
Max number of starts 30/hour
Motor rating P2 8.3 kW
Speed 2,930 rpm
Power cable 20 m type H07RN8-F

Save

60 Hz
Electric submersible pump XJC 80
Maximum submergence 20 m
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 40ºC
Max. media density 1,100 kg/m3
pH of the pumped medium 5-8
Strainer hole 7.5 x 22 mm
Max number of starts 30/hour
Motor rating P2 9.8 kW
Speed 3,520 rpm
Power cable 20 m type H07RN8-F
60 Hz US
Electric submersible pump XJC 80
Maximum submergence 65 ft
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 104ºF
Max. media density 0.0397 lb/inch3
pH of the pumped medium 5-8
Strainer hole 5/16” x 7/8”
Max number of starts 30/hour
Motor rating P2 13 Hp
Speed 3,520 rpm
Power cable 65 ft type AWG
Applications

Dewatering in construction

From roads and bridges to ditches and dams, construction sites are difficult places to work. Construction site managers need solid economic reasons for purchasing equipment. Our submersible dewatering pumps provide them.

Dewatering in tunneling

A tunnel construction is a complex worksite were many different variables need to be taken into consideration, flooding is one of them. Our drainage and sludge submersible dewatering pumps are lightweight, portable and start when you plug them in.
