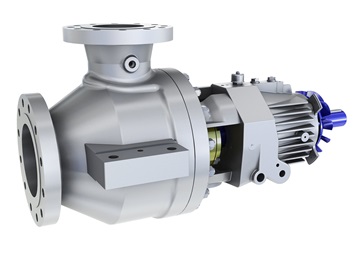

MPP-OHH single stage multiphase pump

Thetys Pumps / Products / Pumps / Single stage centrifugal pumps / API 610 and ISO 13709 pumps / MPP-OHH single stage multiphase pump

MPP-OHH single stage multiphase pump

Unique design for multiphase process applications

The MPP OHH is our API 610 (ISO 13709) type OH2 overhung, horizontal, centerline mounted, single stage, radially split pump combined with a helico-axial hydraulic. It is used as a circulation pump in HPI / Petrochemical applications where some free gas may be present in the process.

Main benefits

Helicoaxial impeller designed for any Gas Volume Fraction from 0 to 100%
Helicoaxial easily handles robust to solid particles (specific coating can be applied depending on the process)
Standard bearing frame the OHH bearing range designed for long bearing life
API 682 cartridge seal type, single or dual mechanical seals
Bespoke seal plans depending on the application

Main applications

Shell Omega process (Monoethylene Glycol process plant)
Petrochemical processes near liquid-vapor saturation line
Circulation pumps in fermentation process
Circulation pumps for DAF waste water applications (Dissolved Air Filtration)

Main design features
Key characteristics

Main design features

Helico axial impeller / diffuser specially designed for 2 phase flow application
7 different specific speeds available
3 different bearing frame size available
300# flange rating standard – 600# flange optional
Heavy duty baseplate with 2 times ISO 13709 (API610) nozzle option

Key characteristics

Capacities	Up to 1000 m3/h / 4400 US gpm
Heads	Up to 7 bar dp / 100 psi dp
Pressures	Up to 51 bar / 740 psi
Power	Up to 400 kW
Maximum speed of rotation	Up to 3600 rpm
