CPT chemical process pump (ANSI/ASME B73.1)

Thetys Pumps / Products / Pumps / Single stage centrifugal pumps / CPT chemical process pump (ANSI/ASME B73.1)

CPT chemical process pump (ANSI/ASME B73.1)

Reliability for tough applications in ANSI markets

CPT chemical end suction single stage centrifugal pumps are used for demanding industrial applications to ensure process reliability, high efficiency and low operating costs.
ASME B73.1 standard covers centrifugal pumps of horizontal, end suction single stage, centerline discharge design, including dimensional interchangeability requirements and certain design features to facilitate installation and maintenance.

Main benefits

Long and trusted experience in all industrial segments
Excellent performance
Exceeds standard requirements of ASME B73.1 standard
Suitable for the most demanding industrial applications
Unique, patented and superior design features minimize life-cycle costs
Quick and easy installation, safe operation, easy maintenance and service

Main applications

Clean and lightly contaminated liquids
Viscous liquids
Fibrous slurries
Large solids containing liquids

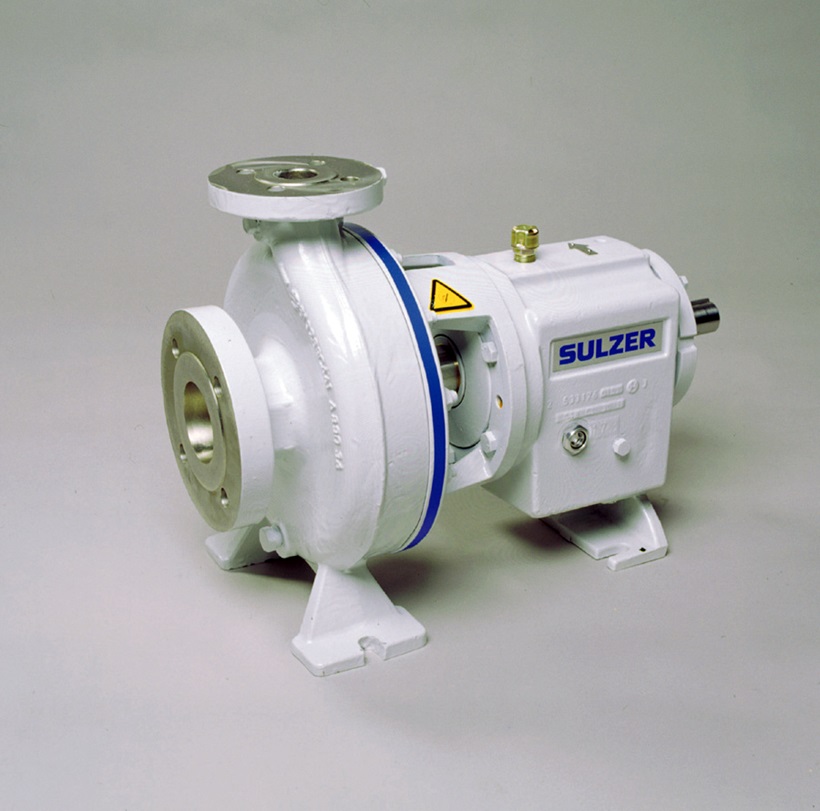

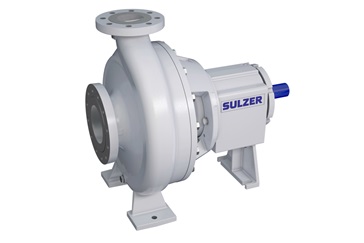

CPT end suction single stage chemical centrifugal process pumps

Main design features

Versatile, reliable, high-efficiency hydraulics and material options
Innovative shaft sealing solutions for reliable operation and reduced costs
Reliable, simplified and heavy-duty bearing unit with a variety of different lubrication options
Modular design minimize the spare part inventory costs

Key characteristics

Capacities	Capacity up to 1,600 m³/h / 7,000 US gpm
Heads	Head up to 220 m / 720 ft
Pressures	Pressure up to 2,5 MPa / 375 psi, depending on material and size
Temperatures	Temperature up to 260 °C / 500 °F
Discharge sizes	Discharge sizes from 25 mm / 1 in to 200 mm / 4 in
Maximum speed of rotation	Speed of rotation up to 3 600 rpm
