HZB-HTF double suction volute pump

Thetys Pumps / Products  / Pumps  / Single stage centrifugal pumps / HZB-HTF double suction volute pump

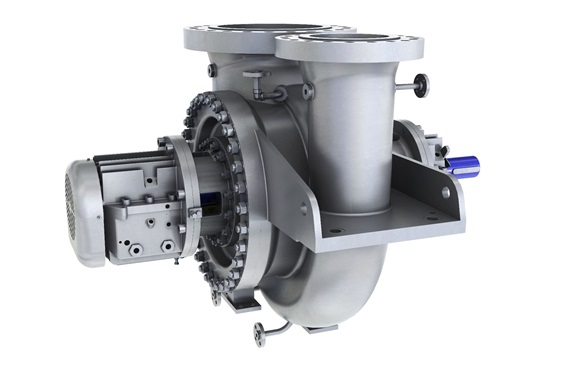

HZB-HTF double suction volute pump

Helping you handle hazardous liquids

The HZB-HTF is a horizontal, radially split, single stage, double suction centerline mounted pump. The HZB-HTF are ideal for use in thermal oil applications for handling clean hot and hazardous liquids.

Main benefits
  • Centerline mounting to allow free thermal expansion and high nozzle loads
  • Minimum bearing span to minimize shaft deflection
  • Single cover casing design to reduce overhaul times
  • Carbon steel or chrome steel casing with excellent mechanical properties
  • Double mechanical seal provides safer operation
Main applications

Main heat transfer fluid (HTF) circulation in concentrated solar power stations

Main design features
  • Double suction impeller with staggered vanes for low Net Positive Suction Head required (NPSHR) and low-pressure pulsations
  • Different nozzle positions are possible
  • Amply sized sleeve radial and tilting pad bearings with forced lubrication as standard
  • Optional self-contained oil lubricated bearings
  • Stiff shaft ensures that critical speed is a minimum of 20 % above the maximum operating speed
  • Mechanical seal jacket cooling
Key characteristics
Capacities Up to 4,000 m3/h / 17,500 US gpm
Heads Up to 340 m / 1,115 ft
Pressures Up to 48 bar / 700 psi
Temperatures Up to 425°C / 800°F
Discharge sizes Up to 400 mm / 16 inches

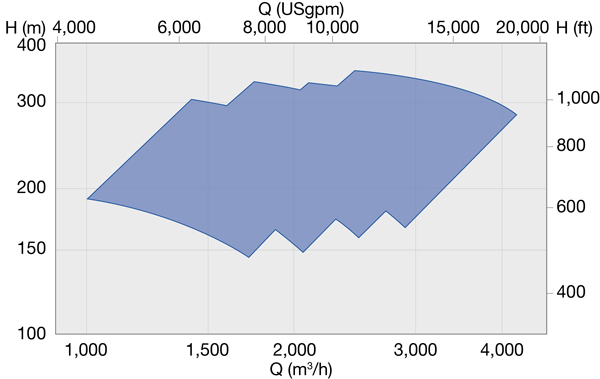

Performance range
HZB-HTF performance range 60 Hz
Performance range 50 and 60 Hz
