AHLSTAR EPP/T process pump range
AHLSTAR EPP/T process pump range
Cool selection for hot liquid pumping needs
- Long and trusted experience in all industrial segments
- Excellent performance
- Exceeds standard requirements of international ISO 5199 standard
- Suitable for the most demanding industrial applications
- Unique, patented and superior design features minimize life-cycle costs
- Quick and easy installation, safe operation, easy maintenance and service
- Clean and lightly contaminated liquids
- Viscous liquids
- Fibrous slurries
AHLSTAR E range type EPP/T
- Versatile, reliable, high-efficiency hydraulics and material options
- Innovative shaft sealing solutions for reliable operation and reduced costs
- Reliable, simplified and heavy-duty bearing unit with a variety of different lubrication options
- Centerline supported case prevents distortion and misalignment caused by high temperature and pressure
- Modular design minimize the spare part inventory costs

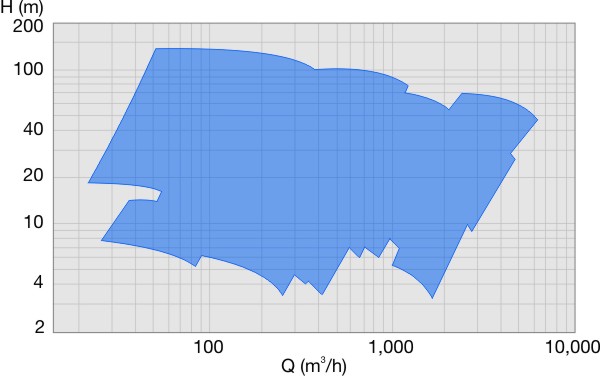

| Capacities |
up to 6,100 m3/h / 26,860 US gpm |
| Heads |
up to 160 m / 525 ft. |
| Pressures |
up to 25 bar / 360 psi, depending on material and size |
| Temperatures |
up to 210 °C / 410 °F |
| Discharge sizes |
from 65 mm / 2.5 in to 500 mm / 20 in |
| Maximum speed of rotation |
up to 3,600 rpm |
