Slurry pump type Ensival Moret PLR and CR

Thetys Pumps / Products  / Pumps  / Slurry pumps / Slurry pump type Ensival Moret PLR and CR

Slurry pump type Ensival Moret PLR and CR

Maximum reliability in solids handling applications

The PLR and CR pump range has been specifically designed to handle liquids with a high solids contents. The PLR pump is designed to be manufactured from special materials with a high hardness level thus affording the best anti-abrasion characteristics. The CR pump is manufactured from stainless steel or other corrosion-resistant alloys to pump aggressive slurries.

Main benefits
  • Maximum abrasion and corrosion resistance
  • Extended pump and spare parts lifetime
  • High reliability and durability
  • Low spare part costs due to high interchangeability between
    PLR and CR pumps
  • Maximum adaptability for specific duties
Main applications

Suitable for the most demanding applications such as:

  • abrasive and corrosive slurries
  • ammonium nitrate
  • froth pumping and self-regulating application

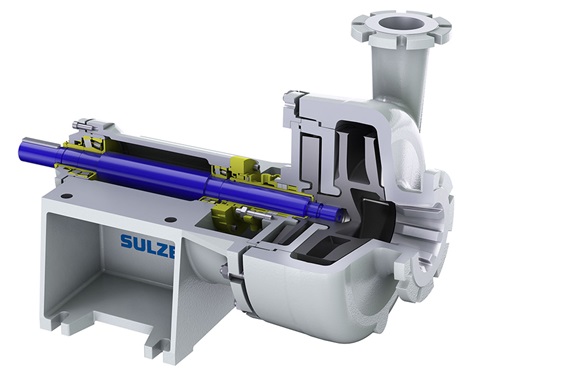

Main design features
  • Wide range of high-quality materials to ensure exceptional resistance against wear
  • Special heavy-duty bearing unit for high reliability
  • Wide range of sealing arrangements to all applications
  • Optimized tangential design to minimize erosion
  • Modular design minimizes spare parts inventory cost
Key characteristics
Capacities up to 3’500 m3/h / 15’400 USgpm
Heads up to 130 m / 430 ft
Pressures Pressure up to 50 bar / 735 psi
Temperatures Temperature up to 150°C / 300°F
Maximum speed of rotation Speed of rotation up to 3’000 rpm / 3’600 rpm
Performance range

Performance range – Slurry pump type Ensival Moret PLR and CR

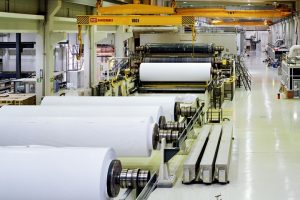

Pulp, paper and board

Sulzer is the world leader in innovative, reliable, and proven pumping, agitation and mixing solutions for the pulp and paper industry. Our deep process and application knowledge is based on long-term close co-operation with the producers, machinery suppliers and engineering companies.

Metals

Sulzer’s pumping and mixing solutions for the base and precious metal industry are designed for corrosive and abrasive liquids. We offer expertise e.g. for the production of aluminum, copper, nickel, zinc, and precious metals.

Chemicals

Sulzer improves quality, capacity, and energy efficiency with its advanced technologies and services for separation processes; including distillation, absorption, evaporation, extraction and crystallization. Our pumps, mixers, and agitators cover the specific requirements in chemical processes.

Fertilizers

Our pumps, mixers and agitators provide durability and reliability for fertilizers production as well as for corrosive and abrasive liquids and high gas content. Our specific industry experience also includes separation processes and servicing of pumps, compressors, turbines, and motors.
