JTS standard vertical turbine pump

Thetys Pumps / Products  / Pumps  / Vertical pumps  / Vertical wet pit pumps / JTS standard vertical turbine pump

JTS standard vertical turbine pump

The simple yet effective water pump

The JTS vertical turbine pump integrates the tradition of providing Sulzer’s highly engineered and reliable vertical turbine pump with the standardization of materials and configurations available in bowl sizes of 180 to 510 mm (7 to 20 inches).

Main benefits
  • Optimized hydraulics for high efficiency
  • Packed stuffing box for reliable sealing and simple maintenance, mechanical seal is optional
  • Rubber-lined product-lubricated bearing in bowls and columns for long maintenance-free periods, other bearing materials are also available
  • Modular design sized individually for the pumping conditions of each installation
  • A variety of defined options allow to adapt the pump to its working environment
Main applications
  • Agricultural pumping
  • Municipal and plant water supply
  • Drainage and flood control
  • Pipeline pumping
  • High pressure pumping and other industrial uses of all types
Main design features
  • Suction bell provided with anti-vortex ribs, tail bearing and replaceable wear rings
  • Cast iron bowl interiors are coated as a standard to reduce friction and increase efficiency
  • Impellers supplied with replaceable wear ring as standard
  • Bowls are fitted with a single bronze bearing or dual bronze and rubber bearings
  • Axial thrust bearing in pump or in motor
Key characteristics
Capacities Up to 1,500 m3/h  /  8,000 US gpm
Heads Up to 300 m  /  1,000 ft
Pressures Up to 36 bar  /  525 psi
Temperatures Up to 85 °C  /  185 °F
Maximum speed of rotation Up to 3,600 rpm
Performance range

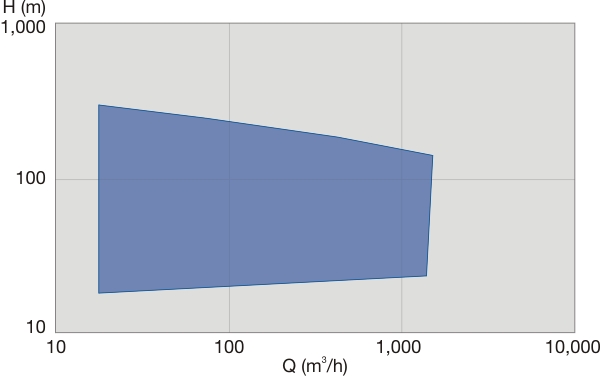

JTS standard vertical turbine pump performance range 50 Hz
Performance range 50 Hz

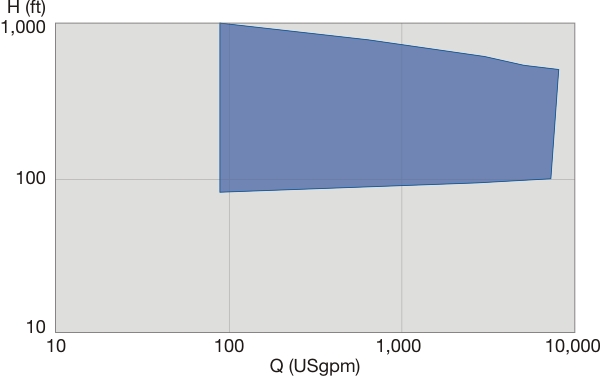

JTS standard vertical turbine pump performance range 60 Hz
Performance range 60 Hz
