JVCR high pressure canned LNG loading pump

Thetys Pumps / Products  / Pumps  / Vertical pumps  / Vertical wet pit pumps / JVCR high pressure canned LNG loading pump

JVCR high pressure canned LNG loading pump

Creating the right pressure for your industry

The JVCR pump is an ISO13709 / API610 Type VS6 vertical multistage can pump that is used in situations where Net Positive Suction Head Available (NPSHa) is limited. A wide range of hydraulics, discharge headgear, and pressure ratings may be supplied depending on individual application requirements.

Main benefits
  • Ease of maintenance
  • Accessibility
  • No inducer required
  • High pump and motor efficiency
  • Proven reliability
Main applications

Liquefied Natural Gas (LNG) at -160°C (-260°F)

Main design features
  • VS 6 vertical can create its own NPSHa
  • Single or double suction, first stage impeller on larger sizes for improved Net Positive Suction Head (NPSH3)
  • High head per stage reduces the number of stages
  • J-unit seal system allows the seal to run in ambient conditions on cold services
  • Modular construction to suit project piping requirements
Key characteristics
Capacities Up to 1,130 m3/h / 5,000 US gpm
Heads Up to 2,450 m / 8,000 ft
Pressures Up to 100 bar / 1,440 psi
Temperatures -170°C to 200°C / -280°F to 400°F
Discharge sizes Up to 500 mm / 20 inches
Maximum speed of rotation 3,600 rpm

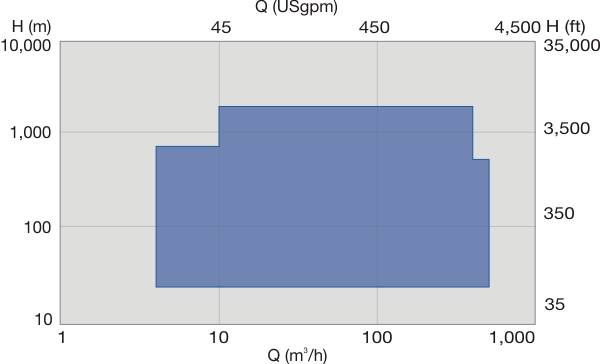

Performance range
JVCR performance range
Performance range 50 – 60Hz
