Submersible grinder pump type ABS Piranha

Thetys Pumps / Submersible grinder pump type ABS Piranha

Submersible grinder pump type ABS Piranha



Pump and grind with our Piranha range

Piranha sewage pumps with shredding action provide reliable and economical discharge of effluent under pressure. Used in high pressure sewage systems, they offer an economical alternative where the terrain doesn’t permit the use of gravity sewers.
Main benefits
  • Effective and economical dewatering using small-diameter discharge lines
  • Unique cutting systems provide blockage-free operation
  • Adjustable bottom plate maintains continuous efficiency
  • High efficiency IE3 motor on Piranha PE gives energy savings
  • Flexible installation options: fixed with pedestal / guide rail and transportable
Main applications

Sewage removal from living units and houses in remote settlements where:

  • The laying of a conventional sewer would be too expensive
  • Large ground undulations are present
  • It is only possible to lay small-diameter pipe lines



Main design features

Piranha – the submersible grinder with the unique cutting system

Unique cutting system for Piranha PE and S

This cutter system has a unique concept in grinder pump design. It consists of a spiral bottom plate and  a stationary cutter ring combined with a shredding rotor located in front of the impeller, for optimum blockage-free running. The shredding system can shred challenging items such as cloths and plastic bags.

For a longer service life, the high head version of Piranha S has a reversible cutter that can be rotated. The cutter face can be used on each sides before the cutter needs replacing.

Adjustable bottom plate on Piranha PE and S

To counteract the effects of wear and to maintain efficiency, the optimum clearance between the bottom plate and the impeller can easily be restored.

Flexible installation options

The Piranha grinder pumps can be installed in several configurations to fulfill virtually any requirements, including:

  • Fixed installation with pedestal (guide rail assembly)
  • Free-standing transportable applications
  • Installation in areas where large fluctuations in terrain elevation are present
Documents

Brochures

Trusted Expertise in Domestic and Commercial Wastewater – Metric Units

Languages:


Languages:

Technical articles

Languages:

Manual

Languages:


Languages:

Data sheets

Languages:


Languages:


Languages:

Dimension drawings

Languages:


Languages:


Languages:


Languages:




Spare parts list

Languages:


Languages:


Languages:


Languages:




Project design files BIM

Languages:


Languages:


Languages:


Languages:


BIM Model – Submersible Grinder Pump Piranha-50-09-D

Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:


Languages:




Languages:

Case studies

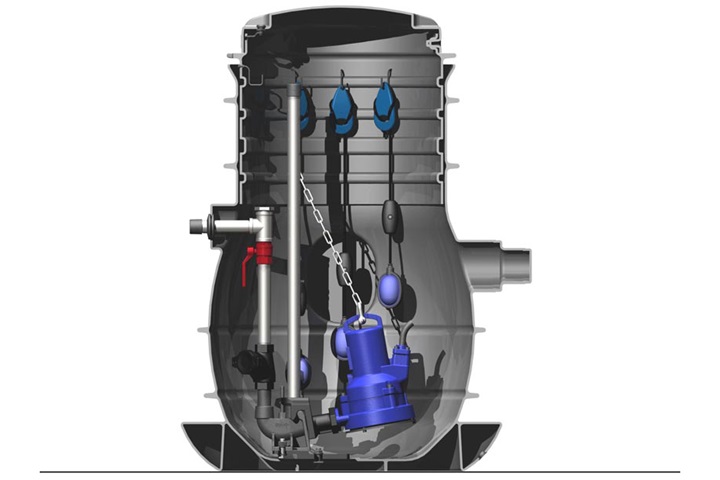

Pumps sump drawing
Pressurized dewatering is typically suitable for sewer systems in outlying areas with no direct access to local gravity sewer lines. It solves ground water pollution problems by utilizing current pumping technology combined with modern trends in sewage removal.

ASFiNAG operates 87 fully-equipped service areas across Austria’s motorway network, offering fuel, food, toilets and washrooms.
Drivers rely on motorway rest areas and service facilities to ensure their comfort and safety on long journeys. However, for Austrian operator ASFiNAG, heavy use of these facilities was leading to maintenance headaches. Now, thanks to Sulzer’s Muffin Monster™ grinder and Piranha pump technology, wastewater pump blockages are becoming a thing of the past.

Wherever fluids are pumped, mixed, controlled or applied, we are there. See how our solutions create value for customers and learn how we can make your pumping and mixing processes more efficient and profitable, safeguarding your production and ensuring lasting reliability.

Applications
The commercial wastewater market
Commercial wastewater from toilets comprises all sewage water flushed from toilets on commercial, industrial or public properties.

Commercial wastewater without toilet waste includes drainage and grey wastewater.

Domestic wastewater from toilets comprises all sewage water flushed from toilets or residential properties.

Domestic wastewater without toilet waste includes drainage and gray wastewater.

Pressurized sewage systems are well suited to outlying locations such as holiday areas and coastal regions, where there may be no direct access to local gravity-based systems. They can also provide an economical alternative to gravity sewers, since they involve smaller pipeline diameters and less excavation.
