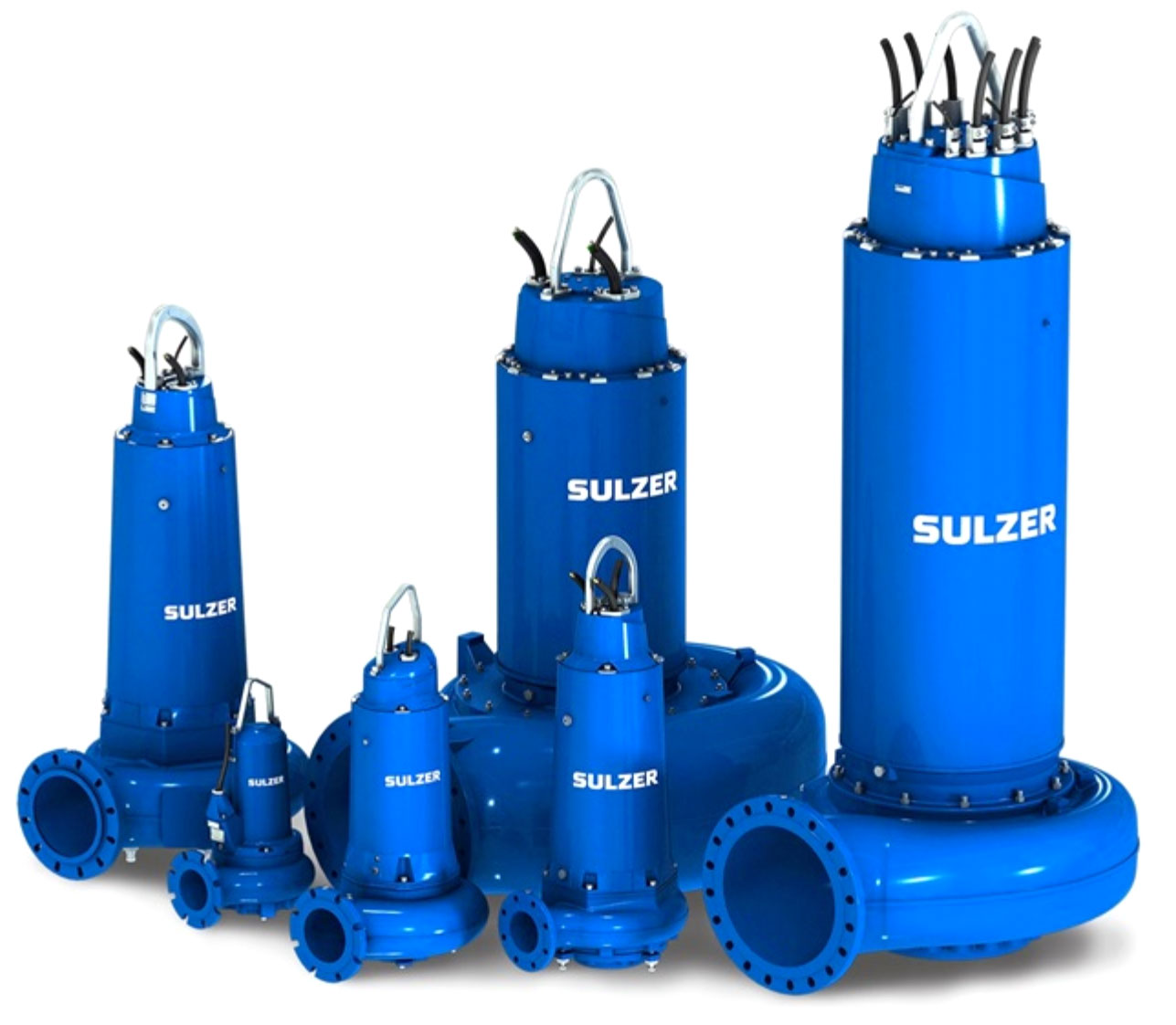

Submersible sewage pump type ABS XFP

Thetys Pumps / Submersible sewage pump type ABS XFP
Submersible sewage pump type ABS XFP



Submersible pumps for greater energy savings

Submersible sewage pumps type ABS XFP are the best choice for ensuring efficient and reliable pumping in any wastewater pumping station. The submersible wastewater pumps, mainly installed in network pumping stations, are equipped with Premium Efficiency IE3 motors as standard and with the Contrablock Plus impellers. They are designed to process today’s wastewater mainly composed of less water due to low-flush toilets and a range of sanitary items such as wipes, fibre material, etc.

Main benefits
  • Premium Efficiency IE3 motors for greater energy savings
  • Long-term reliability with wastewater-designed impellers
  • Greater energy savings gives smaller CO2 footprint
  • Excellent rag handling for minimized downtime
  • Sustainable in manufacturing and operation
Main applications
  • Clean water and wastewater
  • Sewage containing solids and fibrous material
  • Sewage with sludge and high rag content
  • Industrial raw water
  • Municipal combined sewage and storm water systems

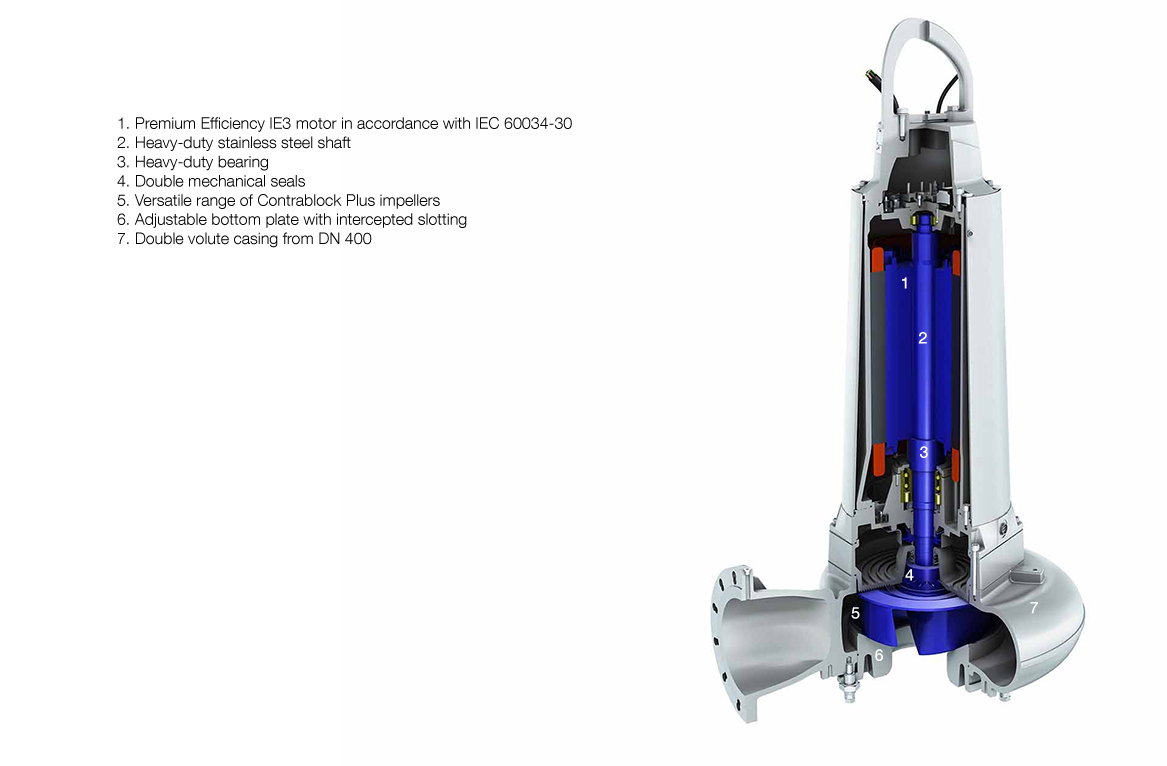

Main design features
  • Premium Efficiency IE3 motors in acc. with IEC60034-30 (from 1.3 – 550 kW in 50 Hz and 2.7 – 830 hp in 60 Hz)
  • Contrablock Plus type single and two vanes, and vortex impellers (1.3-30 kW)
  • Contrablock Plus type multi-vane, closed and skew-type impellers (30-620 kW)
  • Solid passage min. 75 mm and greater
  • Explosion-proof version as option (ATEX, FM or CSA)
  • Closed cooling system (PE1-2)
  • Closed-loop cooling system – standard in PE6 (PE3-PE5 optional)
  • Temperature rise according to NEMA Class A up to 110 kW and Class B above
  • Class H (140°C) insulation
  • Condition monitoring (temperature, water ingress)
  • 100’000 hours bearing life (50’000 hours on PE1-2)
Key characteristics
50 Hz 60 Hz
Pump sizes 80-800 mm 80 to 800 mm / 3.2 to 32 in
Capacities up to 2’400 l/s up to 2’500 l/s / 39’600 USgpm
Heads up to 80 m up to 95 m / 310 ft
Power 1.3 to 550 kW 2 to 620 kW / 2.7 to 830 hp
Motor power PE 1-7
No of poles Power P2 (kW)
PE1 PE2 PE3 PE4 PE5 PE6 PE7
2 50 Hz: 3-4
60 Hz: 4.5
50 Hz: 5.5-11
60 Hz: 8-12.5
50 Hz:
15-25
60 Hz:
18.5-30
4 50 Hz: 1.5-2.9
60 Hz: 2.2-3.5
50 Hz: 4-9
60 Hz: 4.5-10.5
50 Hz: 11-30
60 Hz: 13-35
50 Hz: 22-45
60 Hz: 25-52
50 Hz:
55-110
60 Hz:
63-125
50 Hz:
132-250
60 Hz:
150-335
6 50 Hz: 1.3
60 Hz: 2
50 Hz: 3
60 Hz: 3.5
50 Hz: 9-22
60 Hz: 9-25
50 Hz:
18.5-37
60 Hz:
21-43
50 Hz:
45-90
60 Hz:
52-104
50 Hz:
110-200
60 Hz:
125-220
50 Hz:
250-550
60 Hz:
290-620
8 50 Hz: –
60Hz: 12
50 Hz: 15-30
60 Hz: 17-35
50 Hz: 37-75
60 Hz: 43-86
50 Hz:
90-132
60 Hz:
104-150
50 Hz:
160-450
60 Hz:
185-500
10 50 Hz: 30-55
60 Hz: 35-63
50 Hz:
75-132
60 Hz:
86-150
50 Hz:
160-350
60 Hz:
185-415
12 50 Hz: –
60 Hz:
86-150
50 Hz:
160-300
60 Hz:
185-350
Performance range

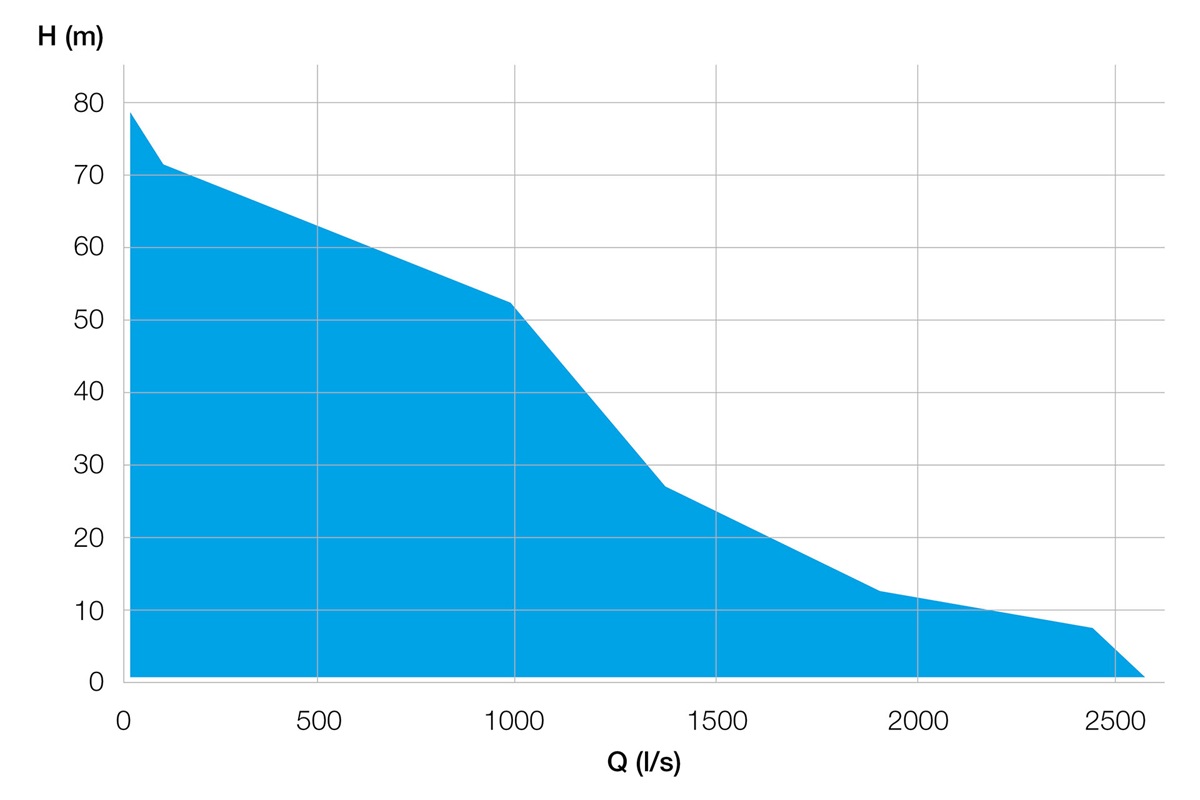

Submersible wastewater and sewage pump type ABS XFP 30-750 kW performance curve 50 Hz
Performance range 50Hz
Submersible waste water and sewage pump type ABS XFP 30-750 kW performance curve 60 Hz US
Performance reach 60Hz
